Cascade Chimney Systems

These systems are designed to transport waste gases to the atmosphere by using a common flue pipe of more than one heat generating device.  Application areas of the AISI 316 L (1.4404) stainless steel chimney system; single-wall inside the shaft, double-wall inside the shaft, double wall outside the building.

The most important issue in cascade flue connections is that the flue section calculation should done correctly in accordance with the standards. Chimney impermeability is important in cascade chimney systems design. Condansate water should be drained by drainage which is located at the bottom of the vertical section of the chimney and at the end of the horizontal chimney.

Chimney system accessories (module connection clamp, wall fixing clamp, support and main carrier) can be installed from outside the building as well as the chimney can be installed in the existing structure

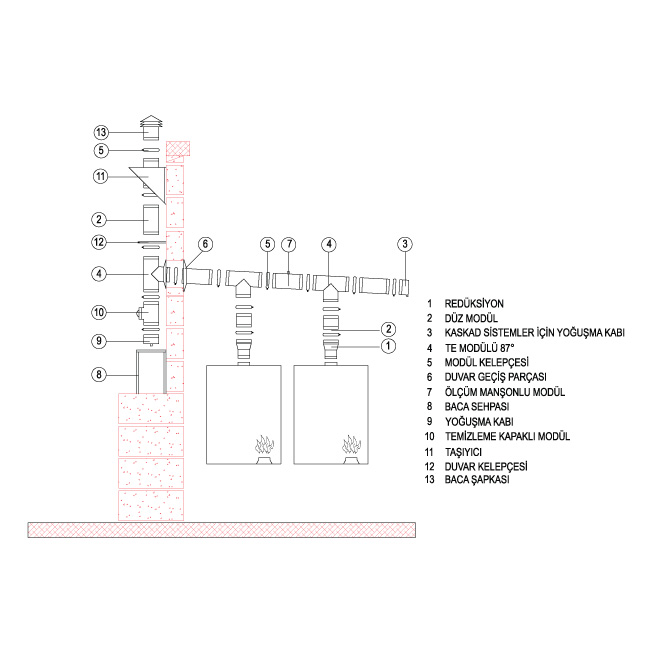

Technical Drawing

Rockwool is used as insulation material. The outer wall material is made of aluminum or stainless steel and is suitable for outdoor use. Application area is natural gas, LNG and LPG fuel fired furnaces.

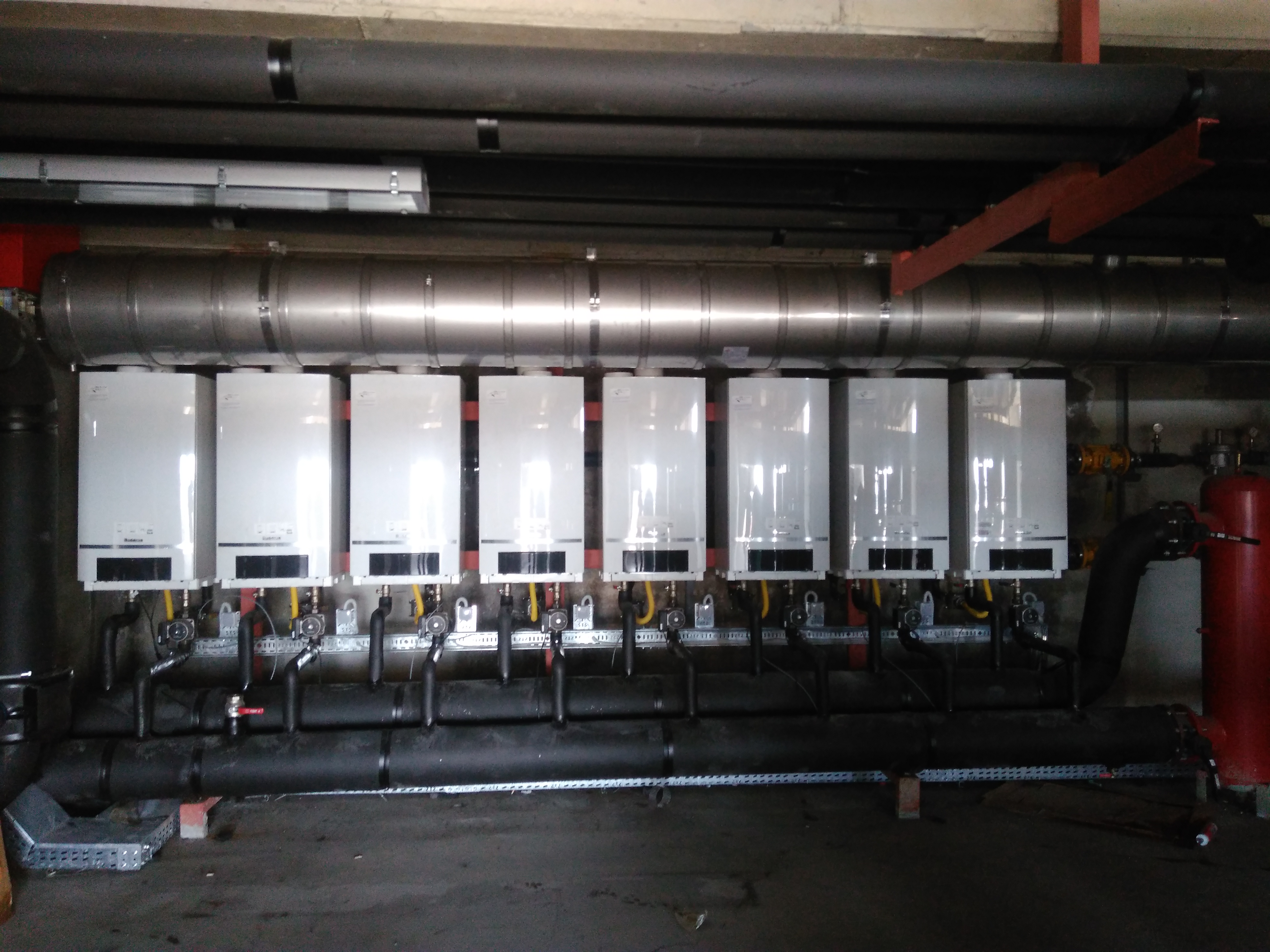

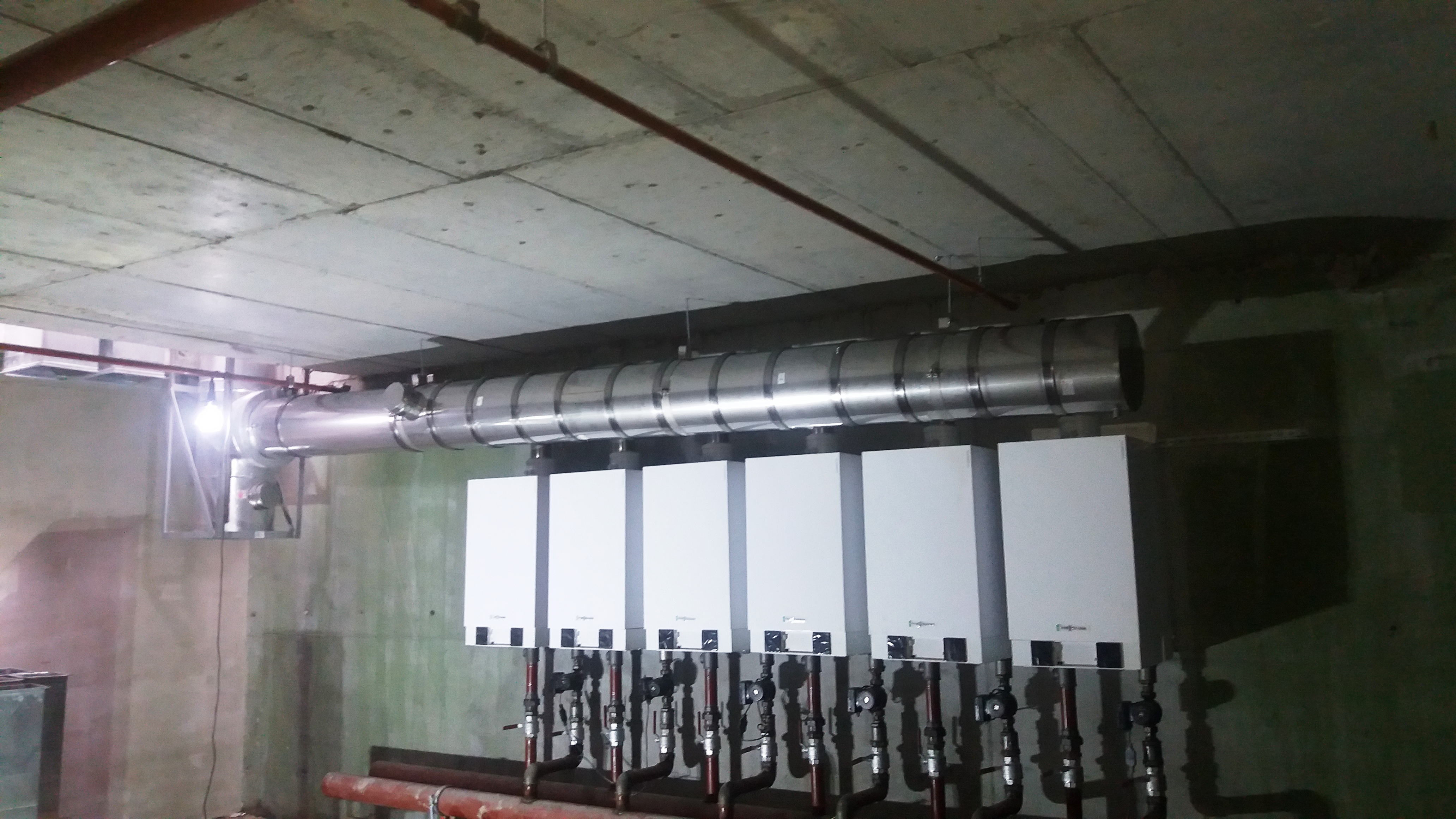

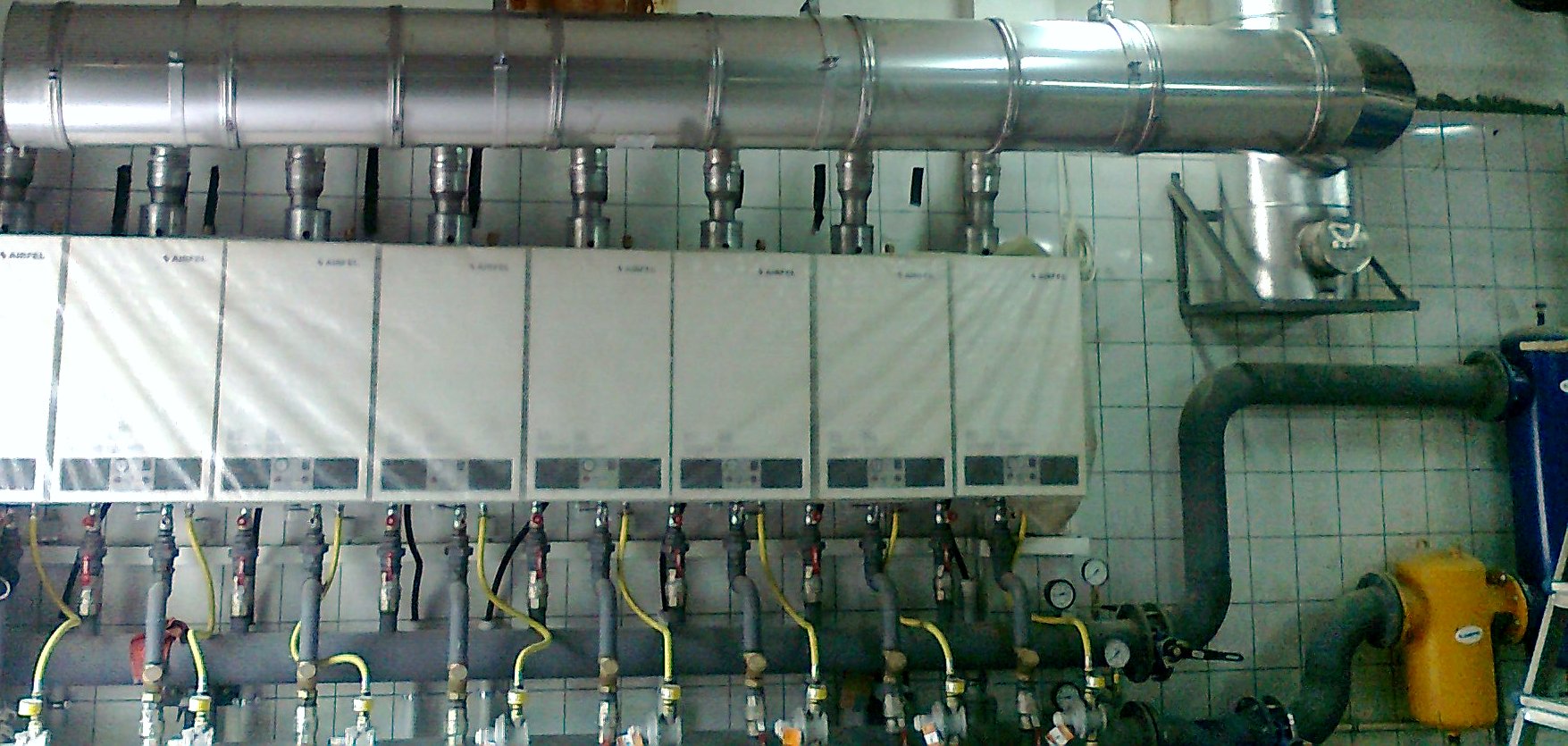

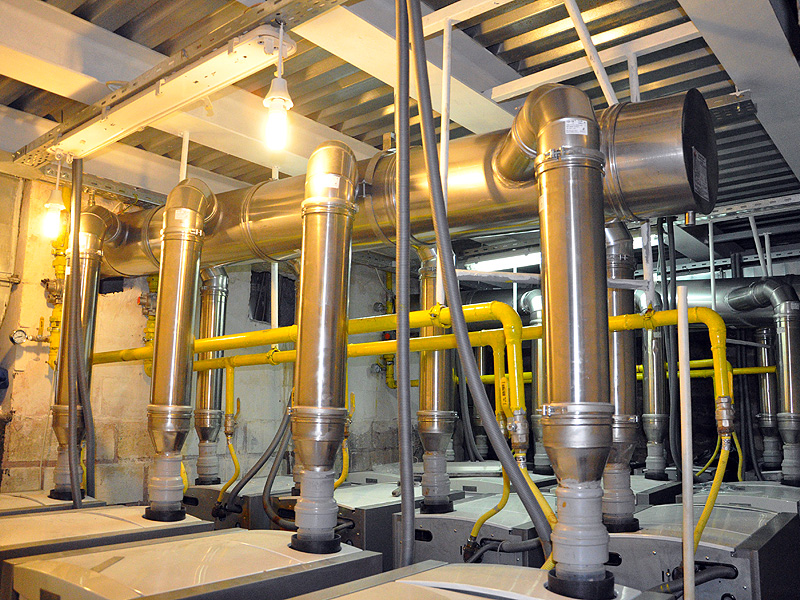

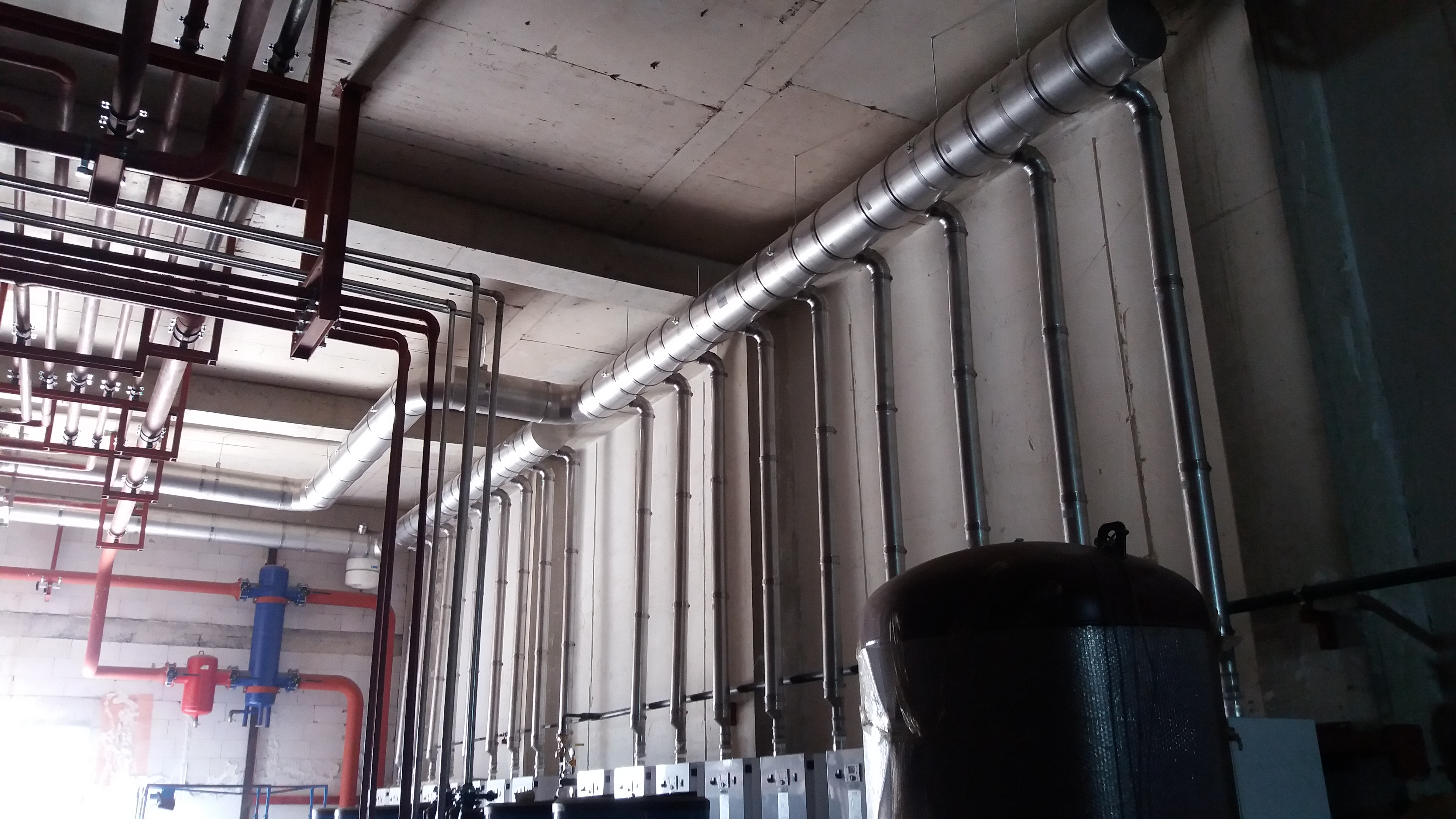

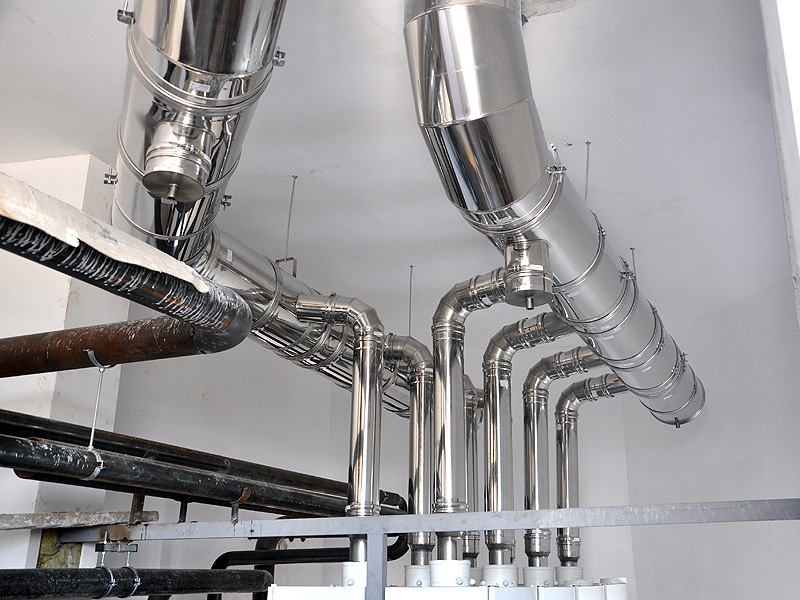

Cascade Chimney Systems Images
