Double Wall Chimney Systems

 Area of use; solid, liquid and gas fuel combustion furnace. Chimney system accessories (module connection clamp, wall fixing clamp, support and main carrier) can be installed from outside the building as well as the chimney can be installed in the existing structure.

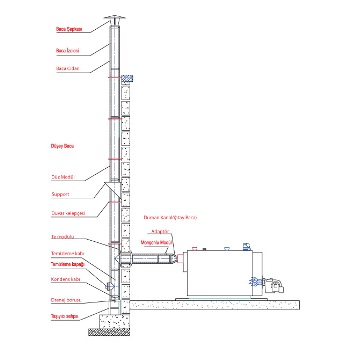

Technical Drawing

AISI 316 L (1.4404) stainless steel chimney system. Rockwool is used as insulation material. The outer wall material is made of aluminum or stainless steel and is suitable for outdoor use.

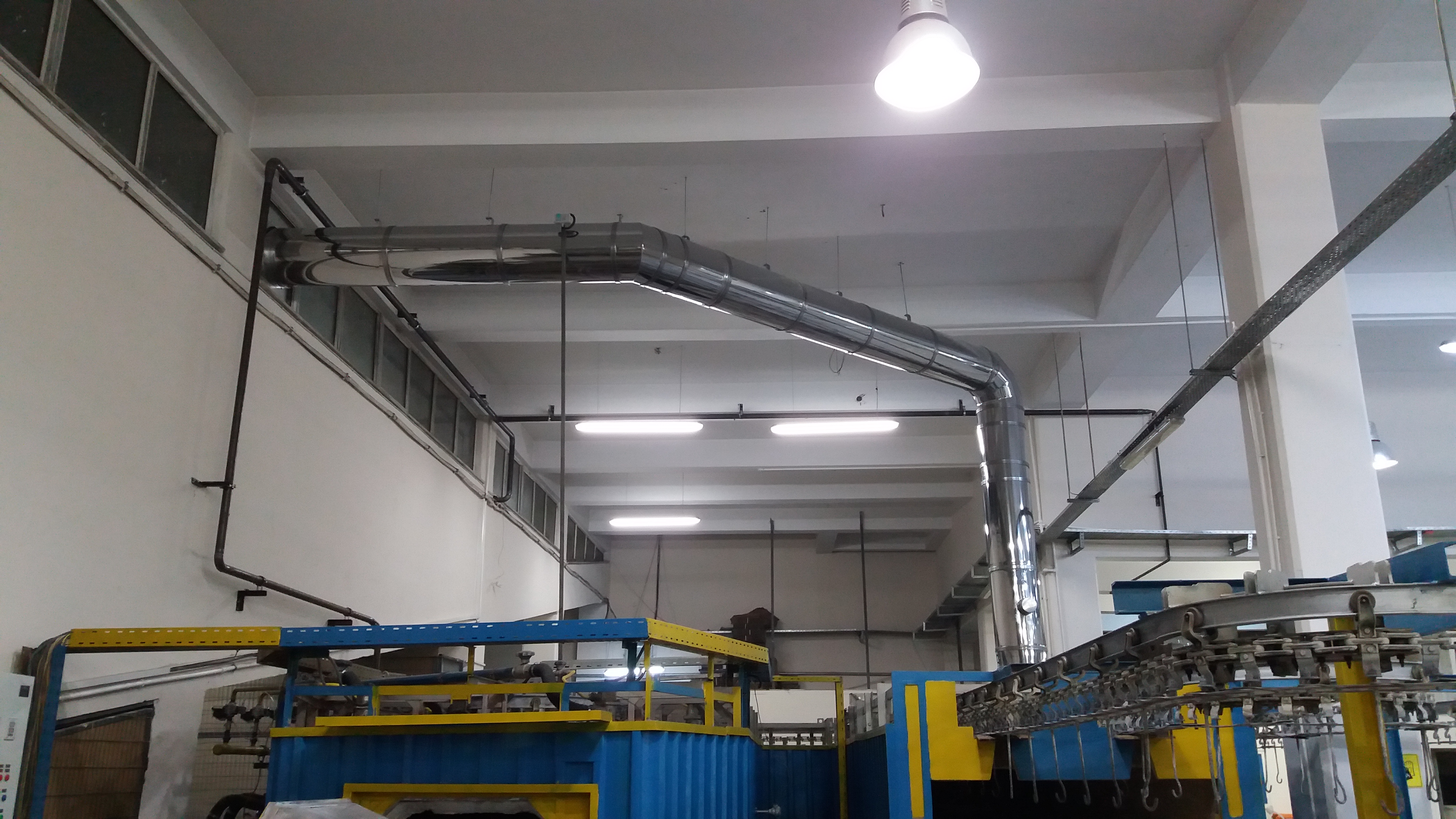

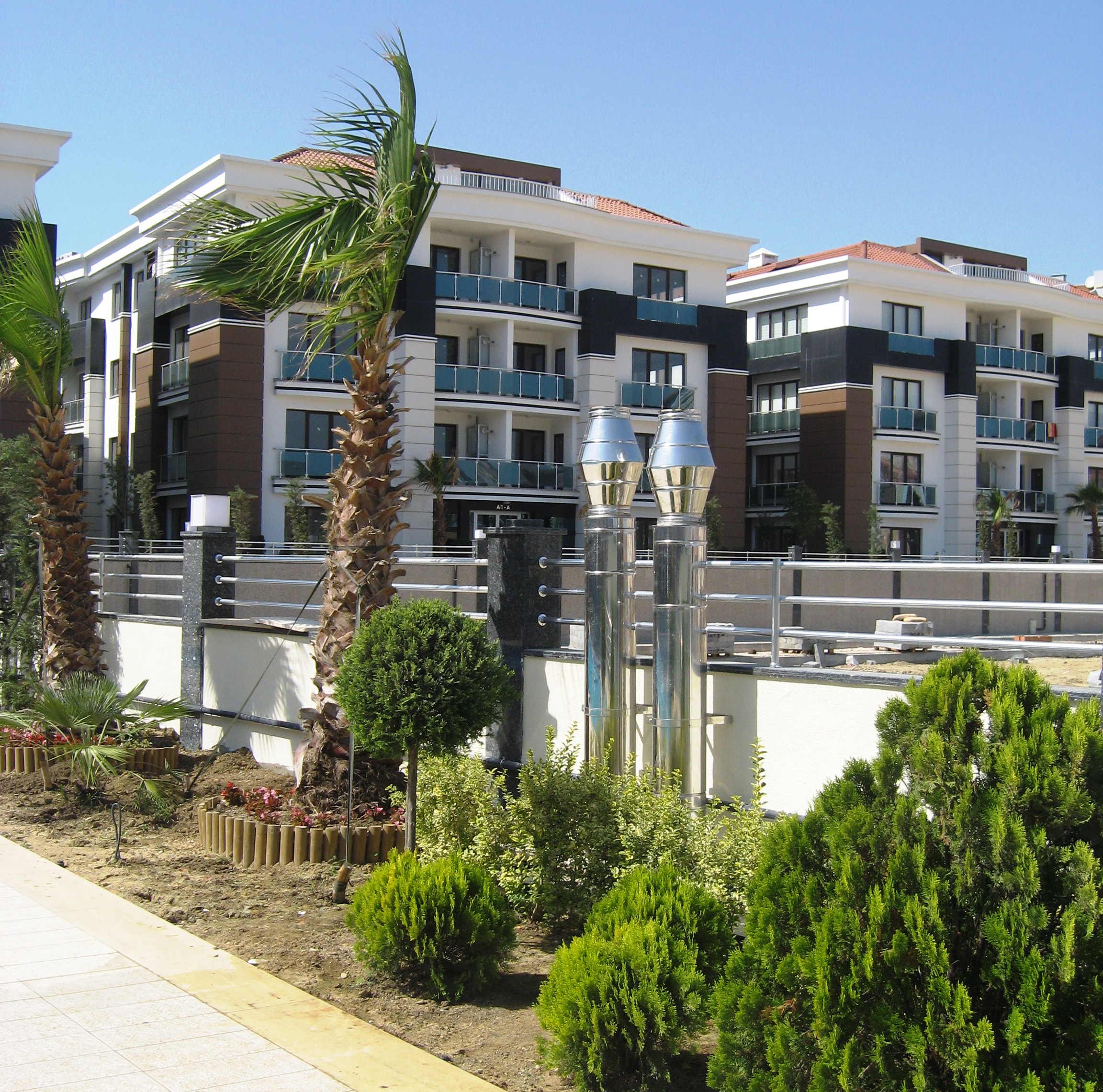

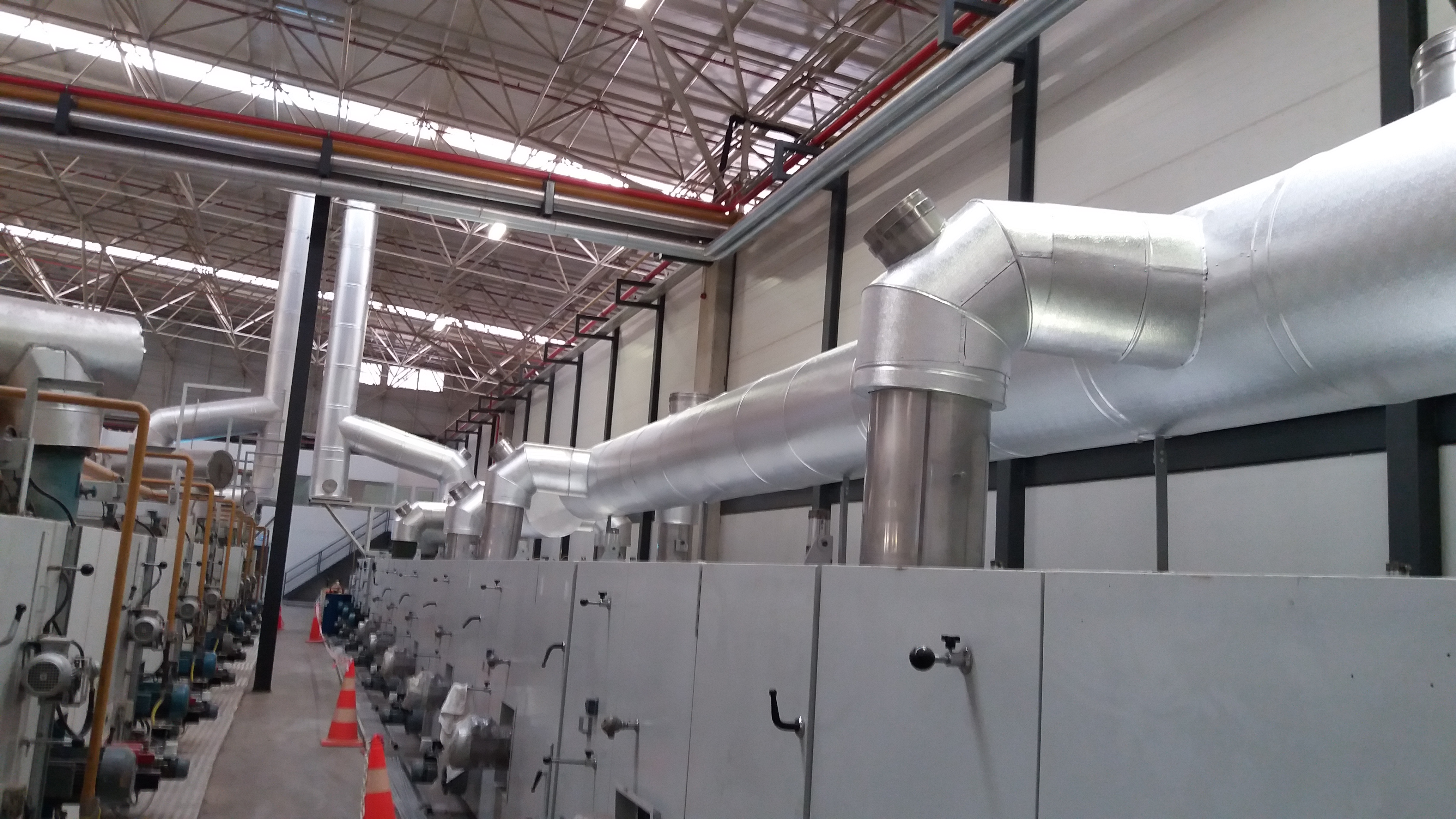

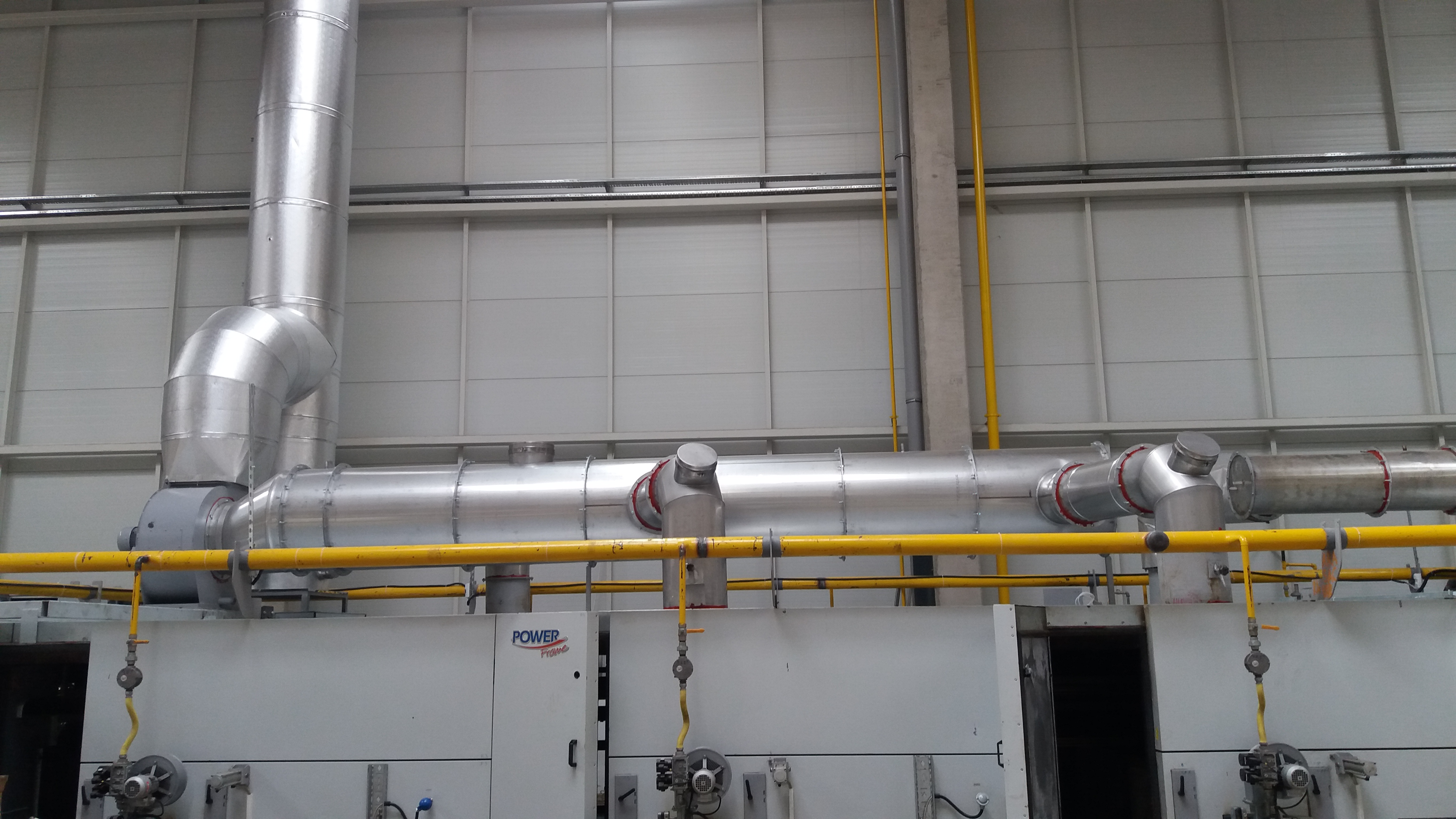

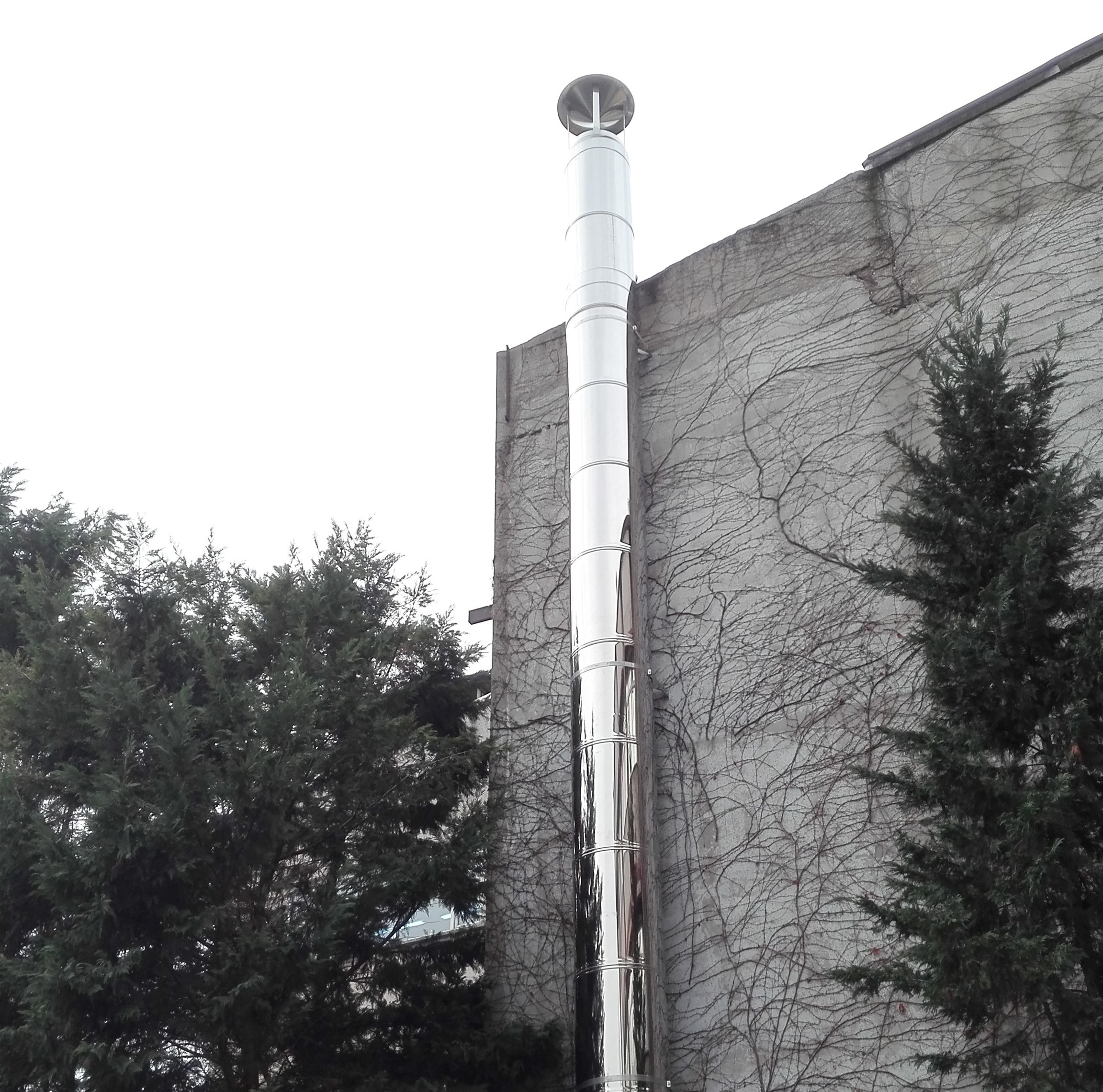

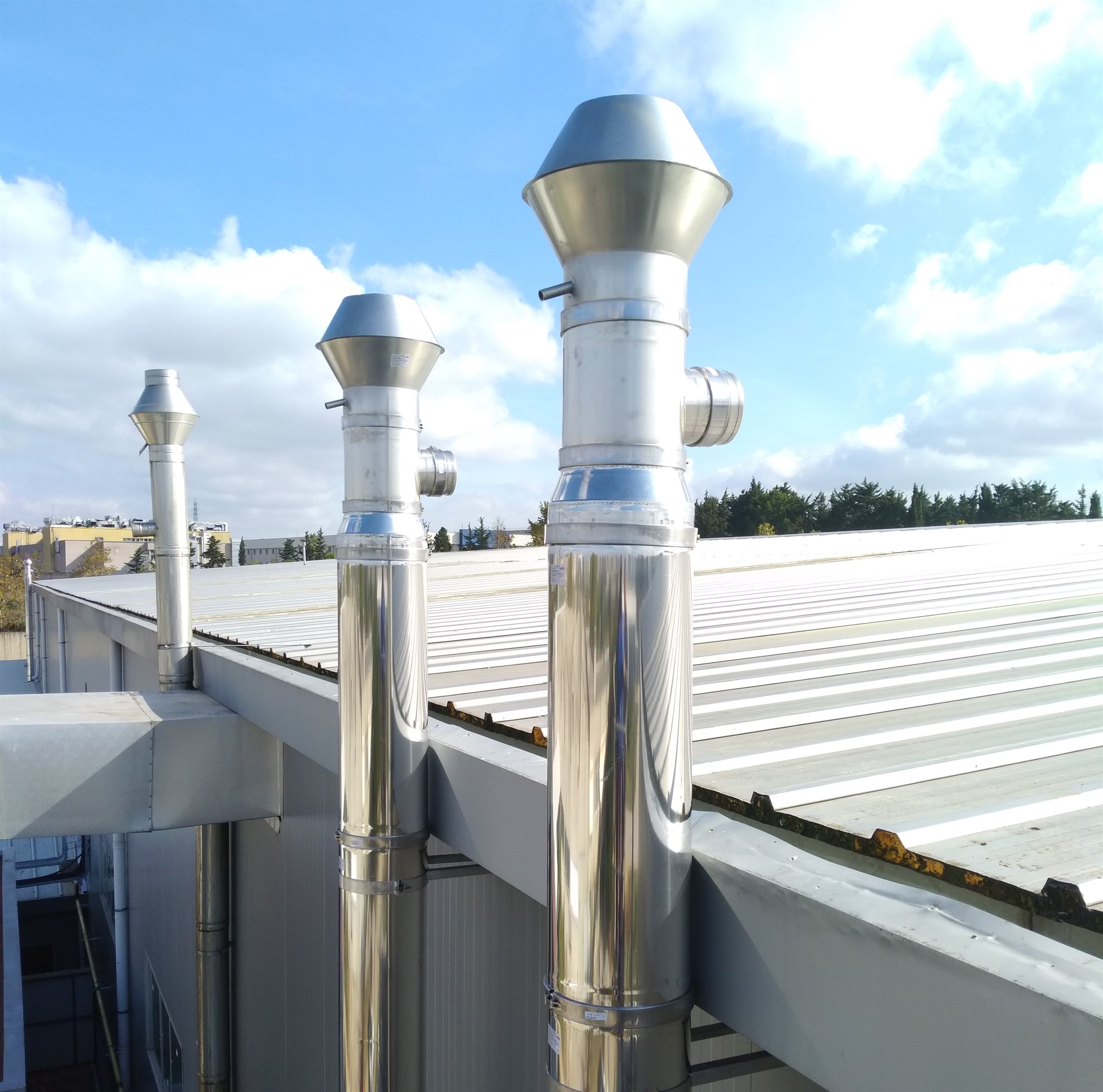

Double Wall Chimney Systems Images
